AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height

ANHUI VMAX TECHNOLOGY CO., LTD
Contact Now

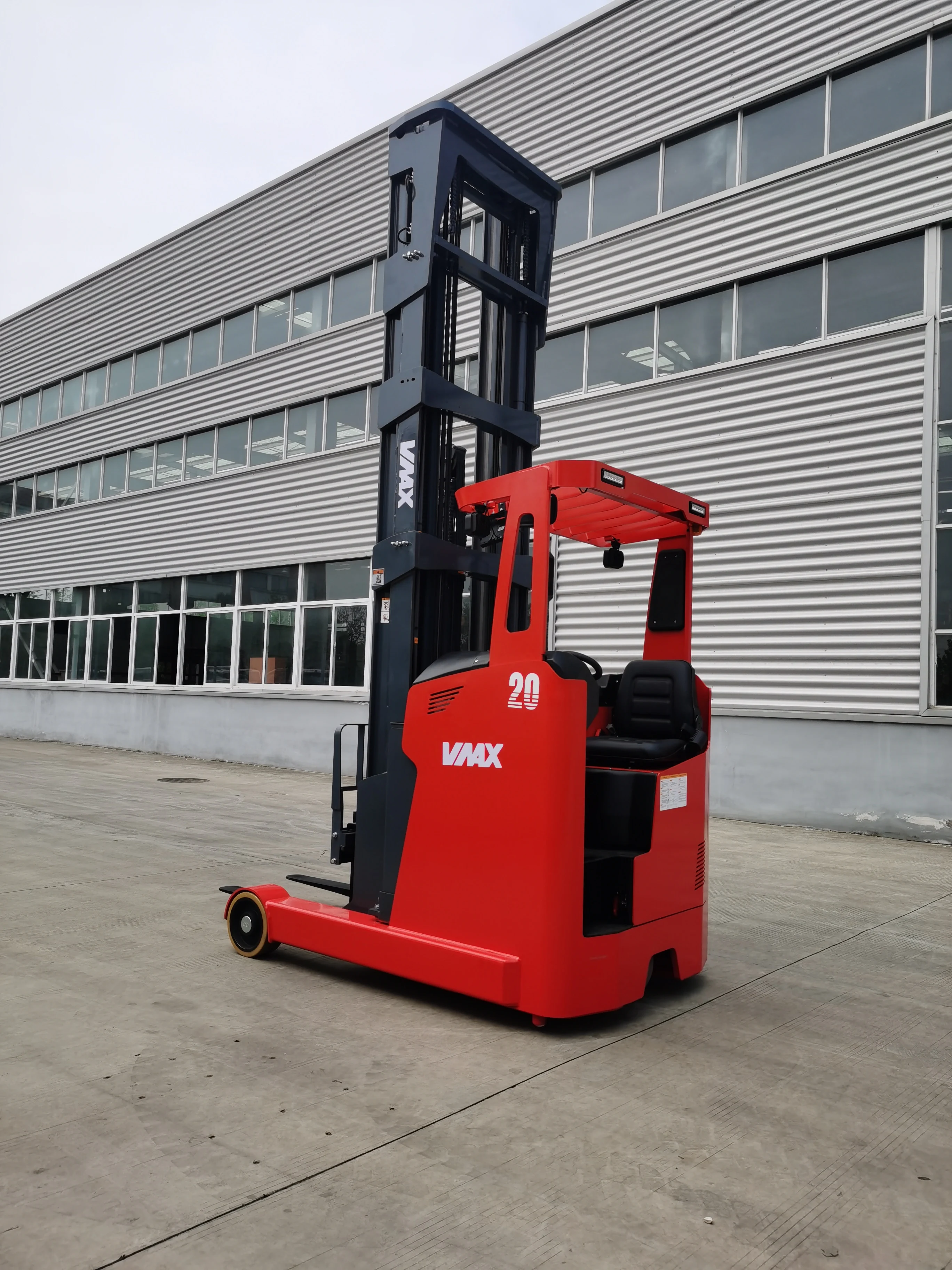

AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height

Brand Name : VMAX

Model Number : MFZ20

Certification : CE,BV,SGS,ISO9001

Place of Origin : China

MOQ : 1 unit

Price : USD15000-22000/unit

Delivery Time : 15 working days

Packaging Details : Standard packing for vmax 2.0ton Electric Seated Reach Truck

Power Souce : AC Motor

Fork Length : 1150

Fork Width : 550

Overall Dimensions : 2680x1225x2120mm

Warranty : 1 Year

Machinery Test Report : provide

load capacity : 1600kg-3000kg

lifting height : 3m - 11m

controller : imported controller

options : Lithium battery

application : Warehouse Material Handling

Steering type : EPS Steering

motor : AC Drive Motor

Contact Now

Product Description

AC motor 2000KG 2T Electric Reach Trucks reach truck electric with 3-11m lifting height

AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height

AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height

00:01
01:15
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
Main features:
1. Full AC system, maintenance-free, high efficiency and energy saving, strong endurance
2. All wheel braking, turning speed
limit, mast buffer, high speed limit, slope slide prevention and other safety functions escort;. 3. Small working aisle, suitable
for high stacking, effectively improve storage capacity;
4. Wide view mast design, electric steering, comfortable and flexible
operation;

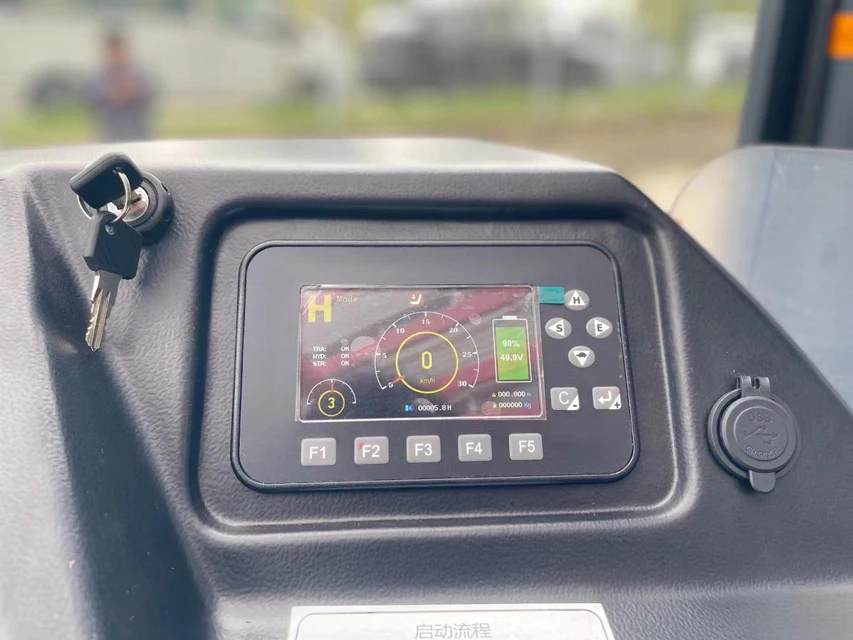

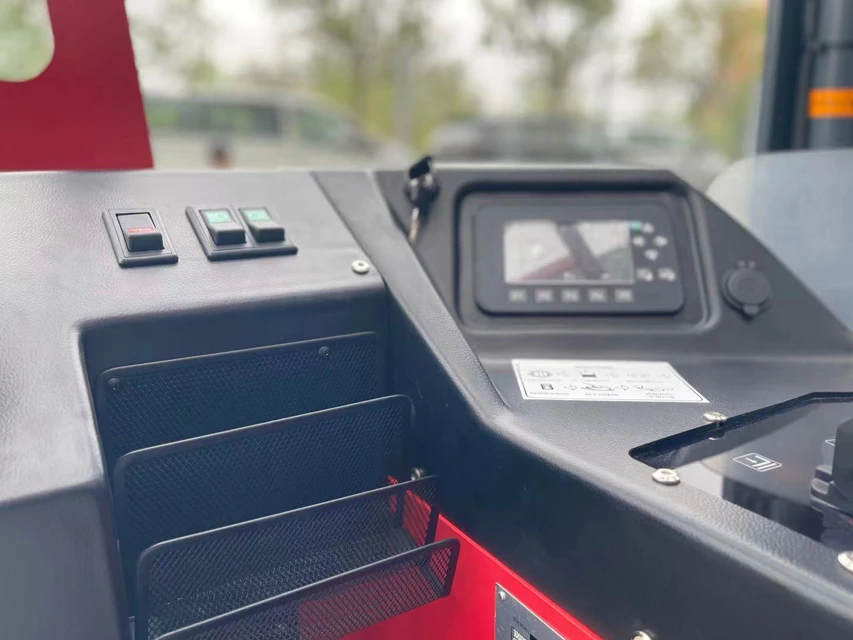

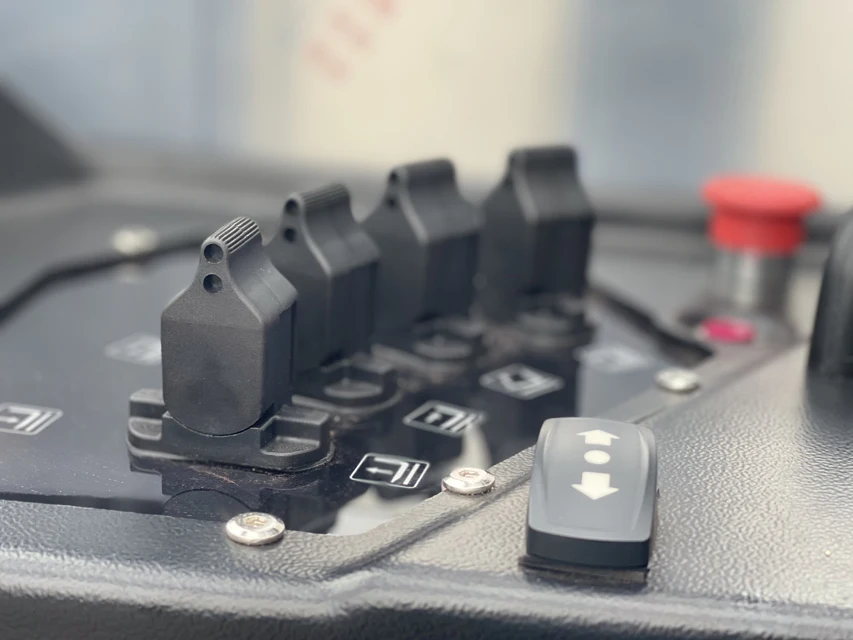

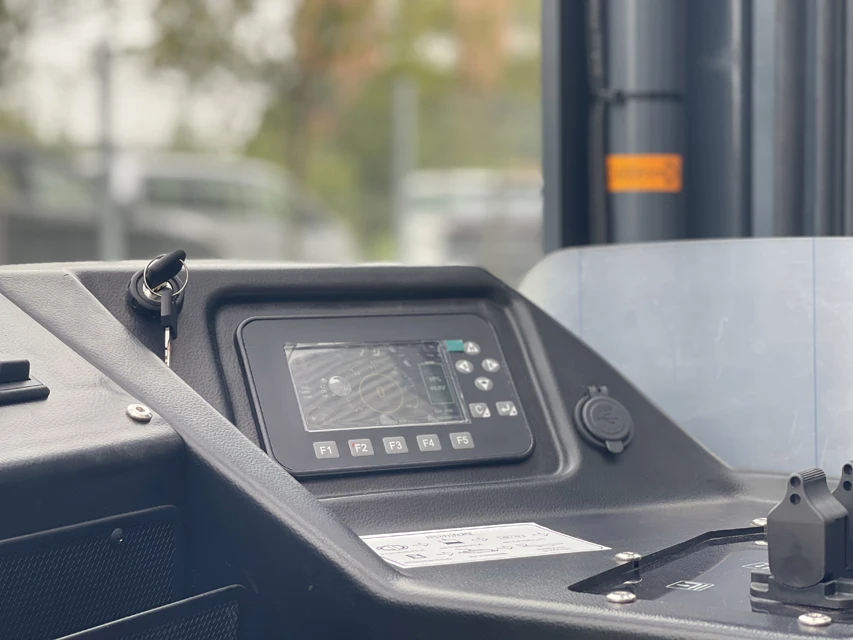

5. Easy to operate rod design and multi-functional intelligent instrument panel, with wheel display function,
comfortable and convenient operation, seat front and rear adjustable;

Specifications
1. ISO&CE certificate
2. One year warranty
3. OEM color & logo
4.vmax forklift can meet the various specific requirements
.
OPTION:
As a professional manufacturer of forklift, we also can offer you customized service,
the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
OTHERS :
A:date of delivery:15-25days after received the deposit
B:payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C:Guaranty period: one year or 2000hours upon receiving goods.

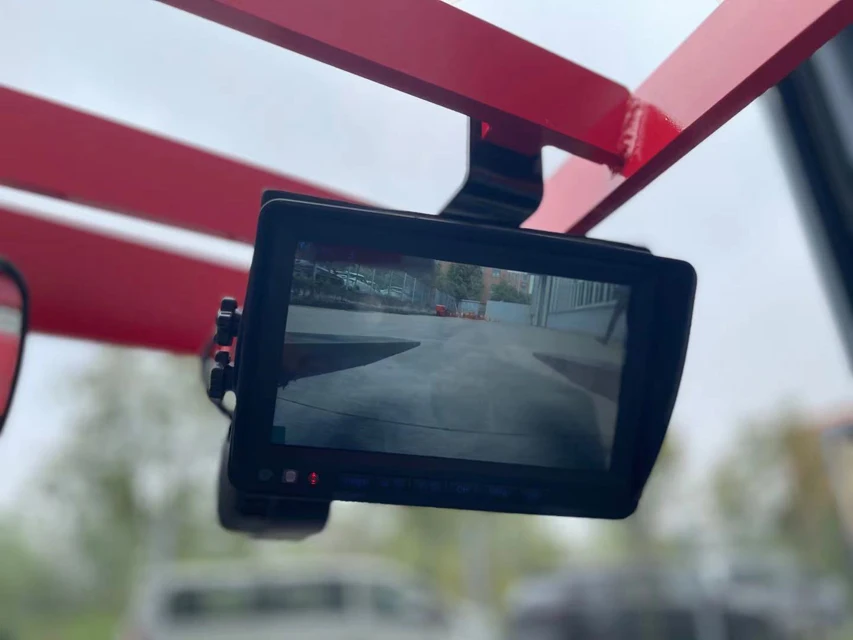

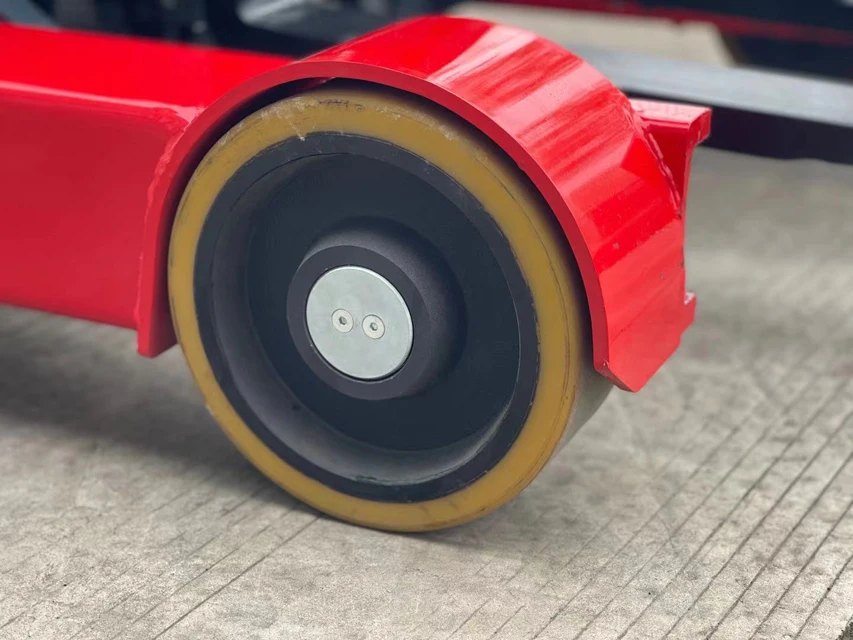

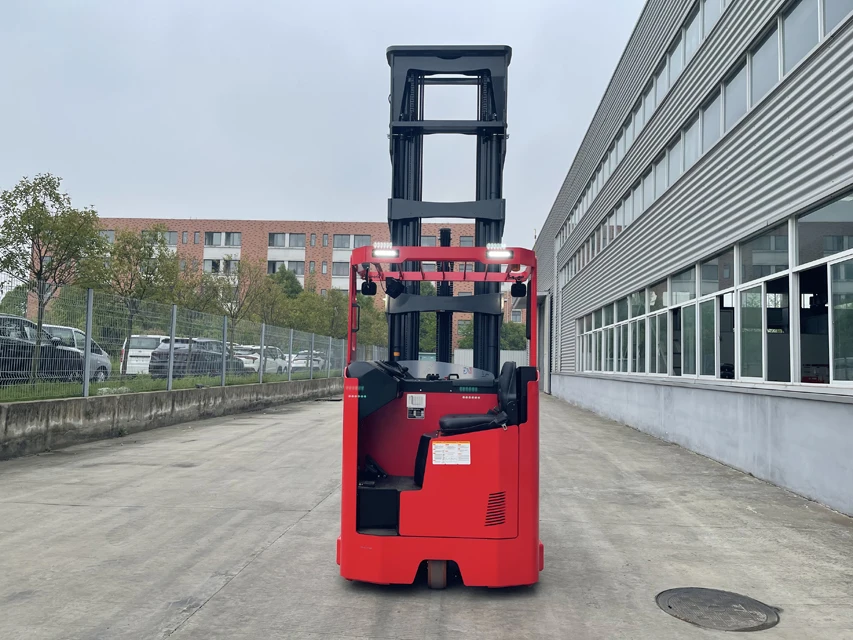

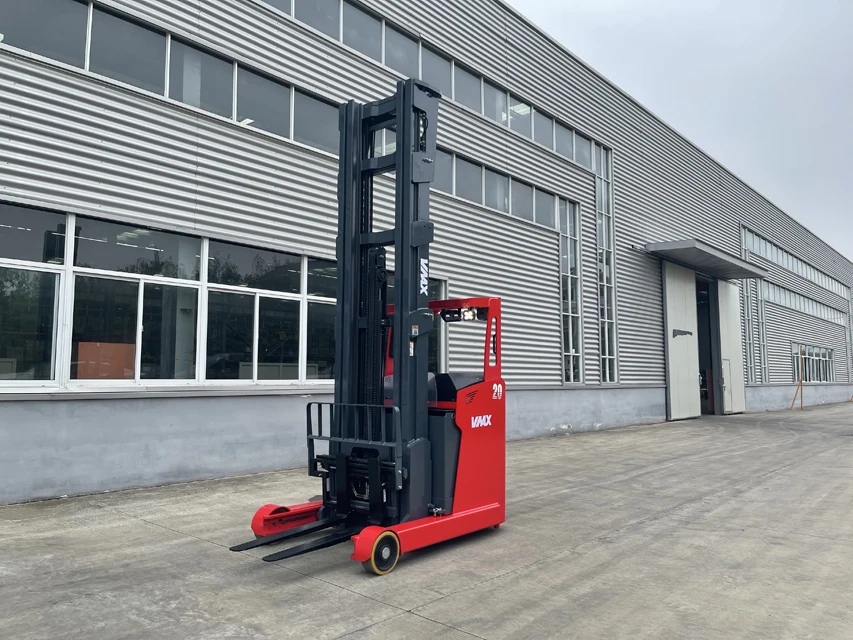

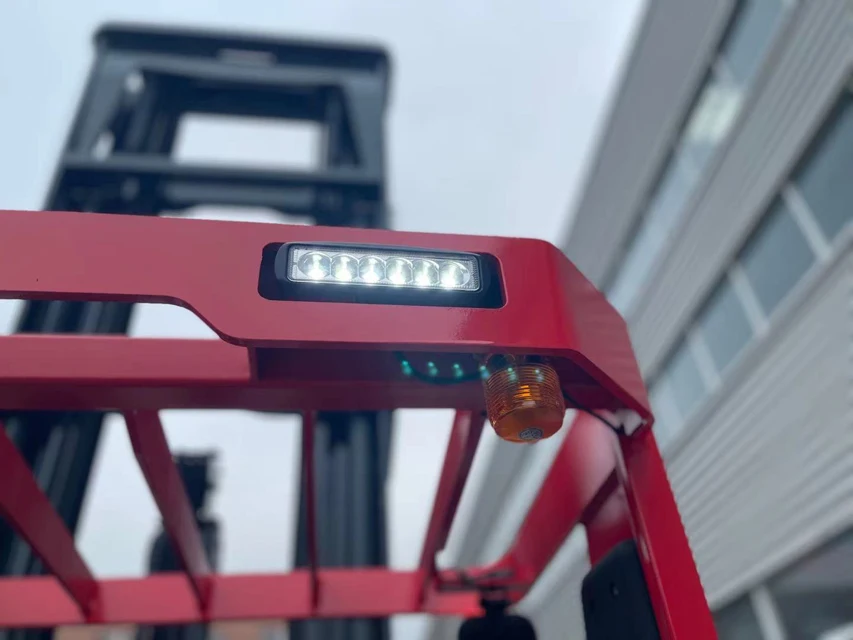

Detail photos:
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
Specification
Brand
VMAX
Power type
battery
Operation Type
Seated
Rated Capacity
Q(kg)
1600
1600
2000
2000
2500
3000
Load Center
C(mm)
500
lift height
h3(mm)
3000
6000
3000
6000
10000
10000
Mast closed height
h1(mm)
3250
4154
3250
4154
4329
4329
Mast extended height
h4(mm)
8470
10930
8470
10930
11062
11062
Overall length
l1(mm)
2340
2496
2421
2496
2532
2604
Overall width

b1/b2(mm)
1270/1290
1270/1390
1270/1290
1270/1390
1270/1400
1270/1400
Turning radius

Wa(mm)
1700
1872
1798
1872
1987
2037
Drive speed
(load/unload)
km/h
8.5/10
Lift speed
(load/unload)
mm/s
210/340
200/300
210/340
260/360
210/340
210/340
Lower speed
(load/unload)
mm/s
300/250
Steering system
EPS
Load capacity : 1.6ton-3ton
Lift height : 3m-11m

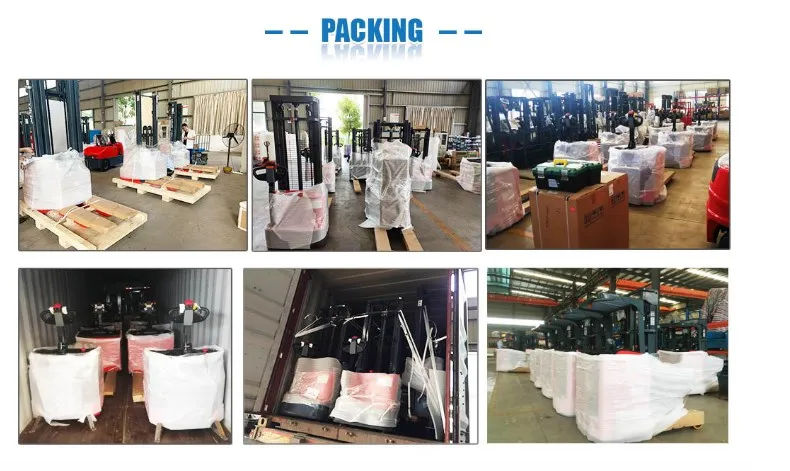

Packing & Delivery
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height

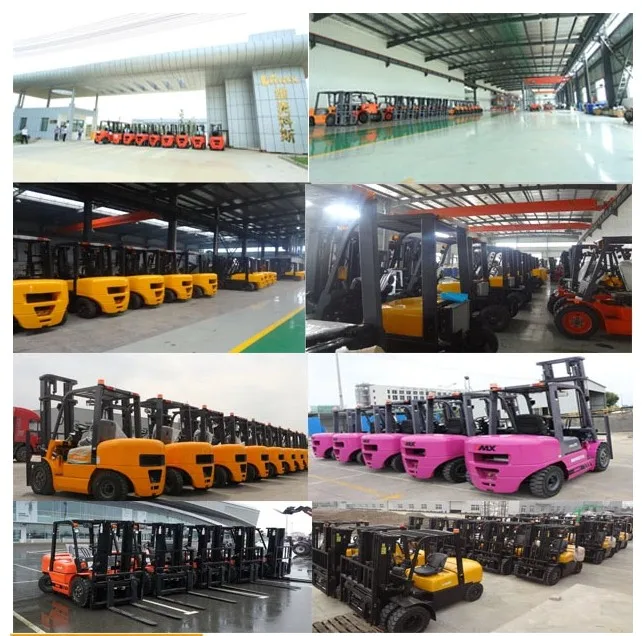

Company Profile
Anhui VMAX HEAVY INDUSTRY Co., Ltd.. is located in Lu'an, Anhui,China. We are one of the biggest forklift manufacturers in China,
which has 67,000 square meter area workshop and outputs 5,000 sets forklifts annually. We have different kinds of large blazing
cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing
equipment, which ensure perfect quality of each forklift from VMAX. Now our products include counter-balance diesel for klift,
battery forklift, gas/lpg forklift, pallet truck, stacker, reach truck, mast mobile container crane, etc. With firstclass
technology and stable quality, VMAX products won the appreciation form majority of overseas customers. Our products have been
exported to Europe, America, the Middle East, Southeast Asia, Africa and many other countries and regions. More than 400 VMAX
members offer you products with top-class service. We sincerely welcome you to visit
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
AC Motor 2000KG 2T Electric Reach Truck With 3-11m Lifting Height
FAQ
1. What Certificate do you have?
VMAX workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate and SGS.

2. Can you customize and design as the clients' requirement?
VMAX will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
Production Time: Within 20 days after order confirmed
